BW-100 Triplex Pump for Boiler Feed

BW-100 reciprocating pump is a horizontal triplex reciprocating single-acting piston pump.

نموذج :
BW-100
يكتب :
Hydraulic Boiler Feed Pump
سكتة دماغية :
60
قطر الاسطوانة :
55
تدفق :
100 L/min
ضغط :
7 Mpa
ميناء الشحن :
Shanghai Port, China
ضمان :
12 Months

استعلام

تفاصيل المنتج

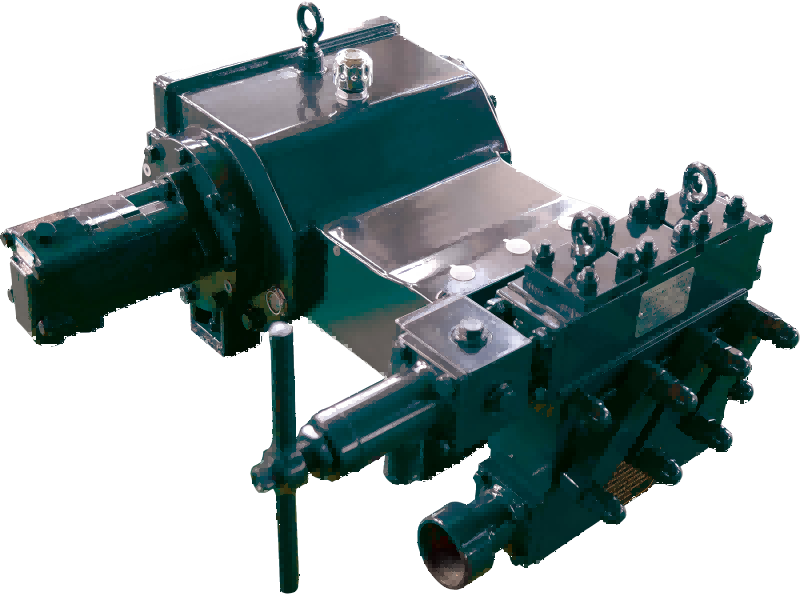

The BW-100 reciprocating pump is a horizontal three-cylinder reciprocating single-acting piston pump driven by a hydraulic motor. It is mainly used for boiler feed , but can also be used in conjunction with non-digging drilling rigs weighing around 10 tonnes, as well as for grouting, mine drainage, long-distance water delivery and other applications.

Technical Parameters and Specifications:

Type	Horizontal Triplex Reciprocating Single Acting Piston / Plunger Pump
Stroke (mm)	60
Cyclinder Diameter (mm)	55
Flow ( L/min)	100
Pressure (Mpa)	7
Input Speed (r/min)	240
Input Power (KW)	14
Dimensions (mm)	690641350
Weight (kg)	175
Hydraulic Motor Model	2K604-0046
Hydraulic Motor Pressure (Mpa)	17
Maximum Motor Flow (L/min)	65

Advantages:

Long service life of wear parts
Reliable, durable, stable performance, and easy to operate
Compact production structure, light weight, small size, and attractive appearance

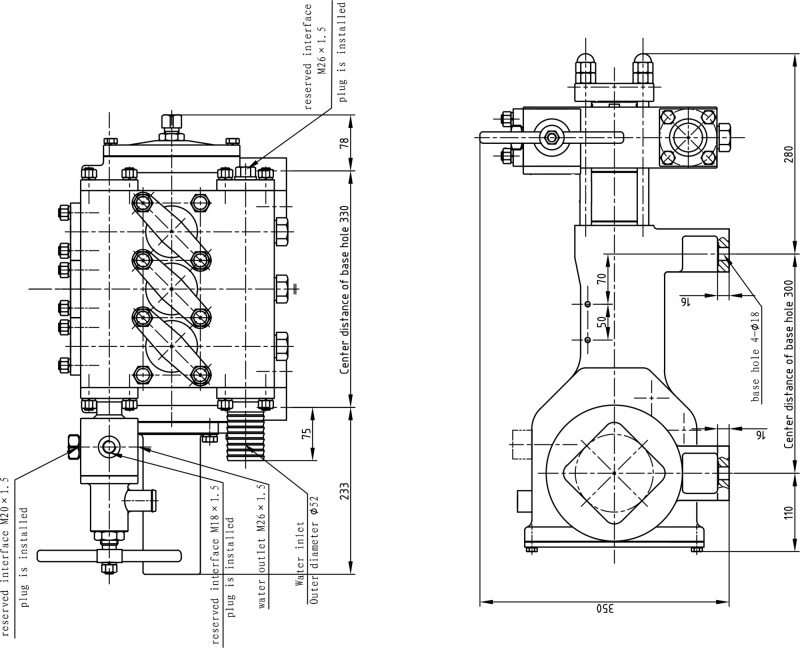

Engineering dimensional outline:

Custom Solutions:

Elephant Machinery is committed to providing top-notch single pump and complete pump station solutions for customers worldwide. From oilfield water injection, polymer injection, cementing, pipeline pressure testing, to crude oil circulation, our solutions cover a wide range of fields.
